Baffles (pg 4)

This page shows some pictures of the baffles painted and installed. Still need to seal the gaps with high-temp RTV at this point, but the baffles are nearly ready to fly. The masking tape on the corners is a temporary hold down; I'm told the air seal material will take a "set" after a few hours of flight and I'm not sure I want to permanently sew the corner overlaps together.

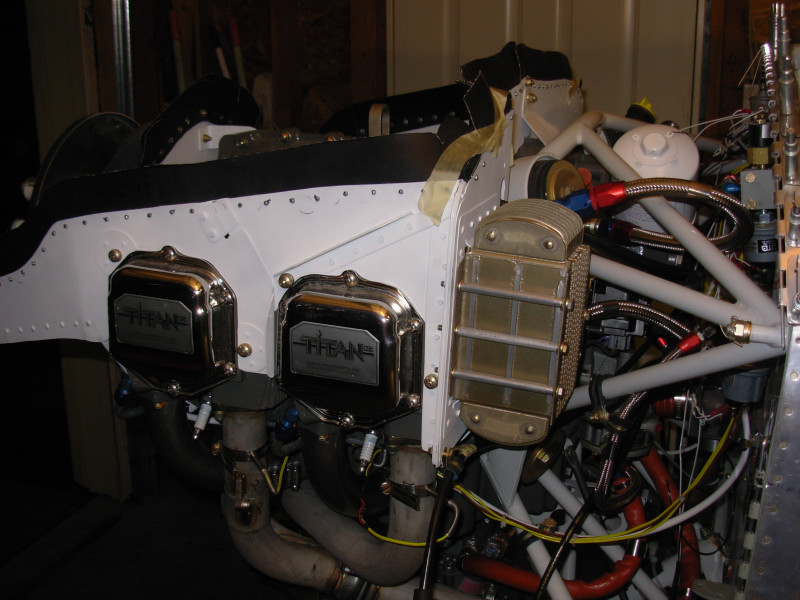

Left side and aft area shown here with oil cooler installed:

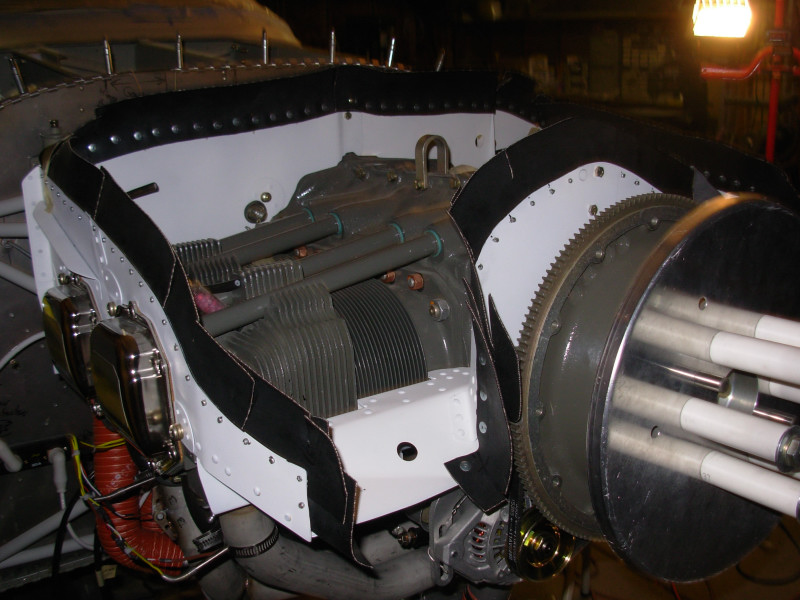

Front view of left side:

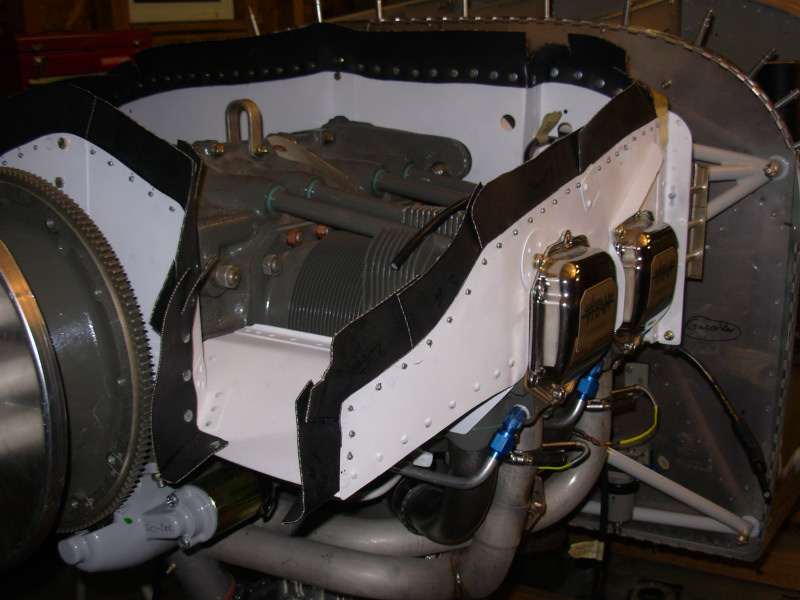

Front view of right side:

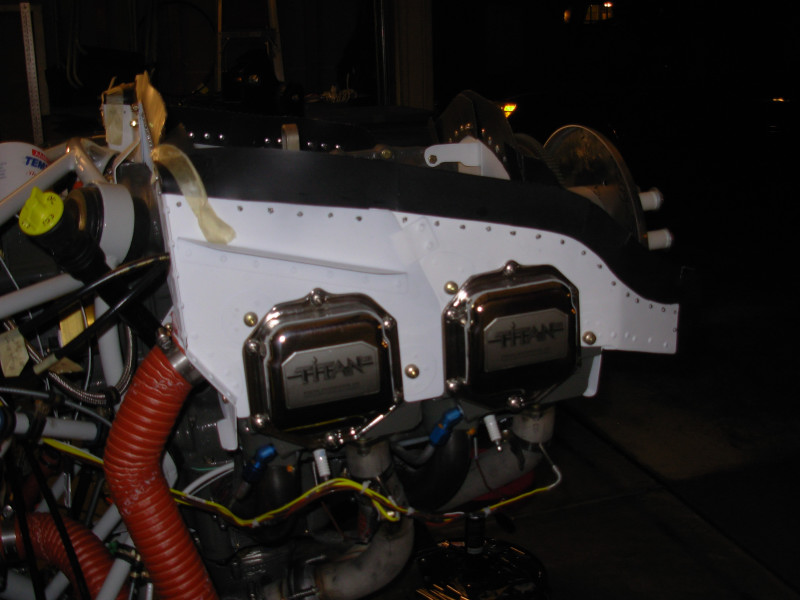

Right side view:

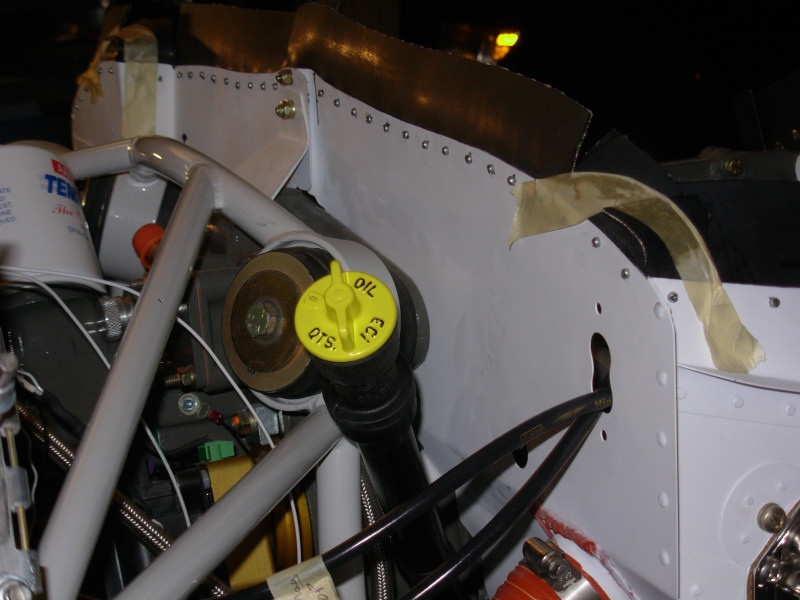

Aft, right side view with ignition harness work in progress:
