Cowling:   pg 1   |  pg 2  |  pg 3  |  pg 4  |  pg 5

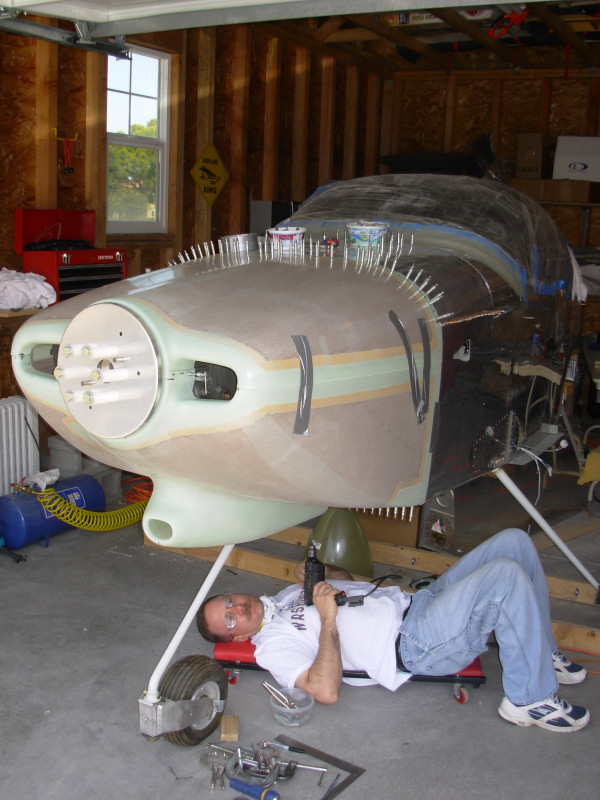

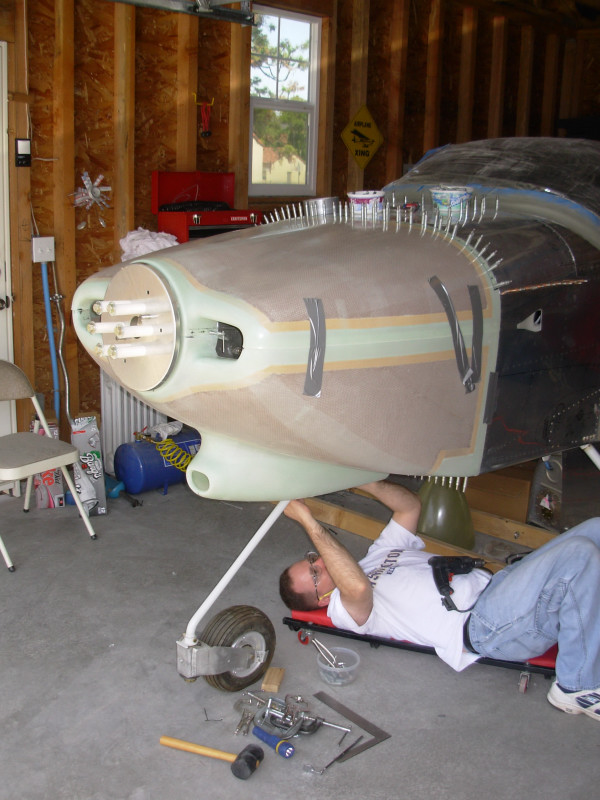

The mechanic's creeper does come in handy on the RV project, just as it did when cleaning the bottom of my old Cessna 140.  Here I am drilling the bottom cowl to the firewall:

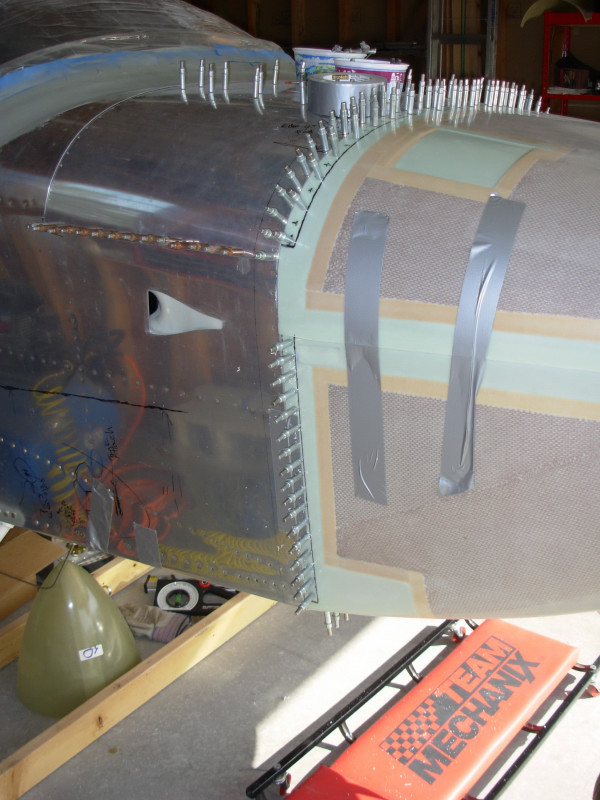

Now it's ready to trim the sides and fit the side hinges:

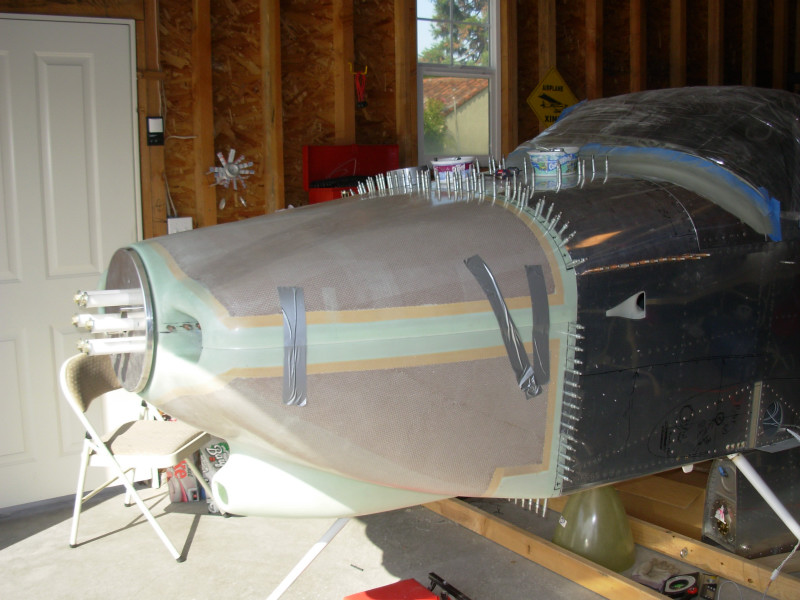

Here the top and bottom cowling halves are drilled to the fuselage to cowl hinges and the cowling halves are drilled together where the screws/nutplates will go behind the spinner.  Still need to install the horizontal top to bottom attach hinges:



Here's a picture of the bottom cowl to fuselage attach point:

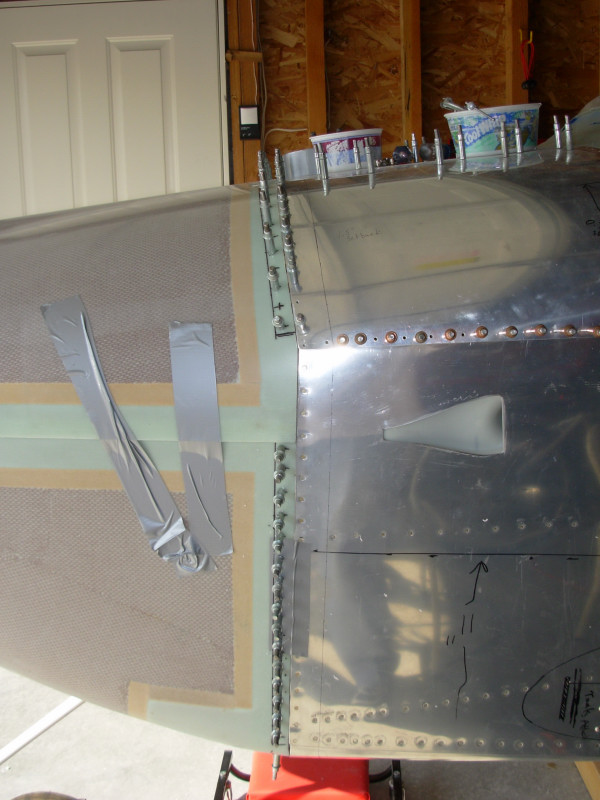

Close up of right side during cowling fitting process:

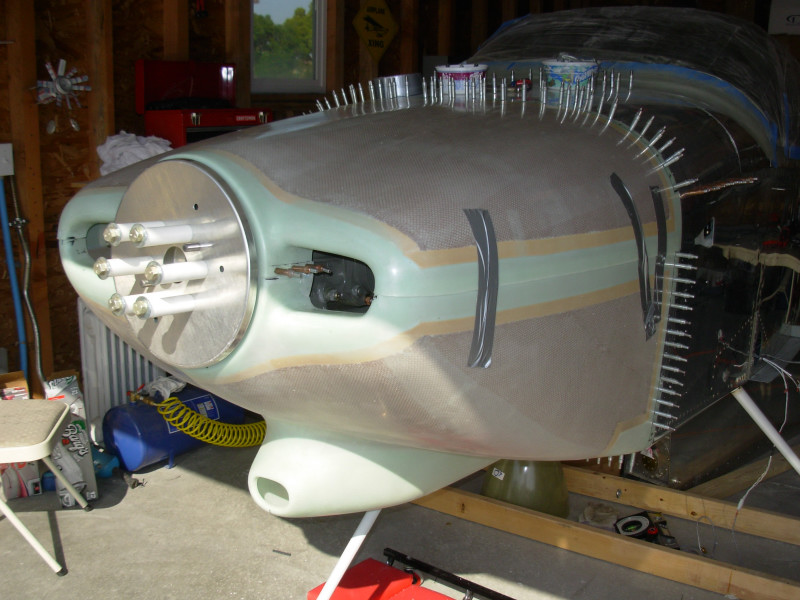

You can see the clecos in the air inlet where the screws and nutplates will go.  Unfortunately I didn't figure out until after I put the nutplates in that the aft-most hole results in too little clearance with the flywheel.  So I had to do a little re-work to prevent any interference.



Cowling:   pg 1   |  pg 2  |  pg 3  |  pg 4  |  pg 5
