Fuselage Photos (Pg14)

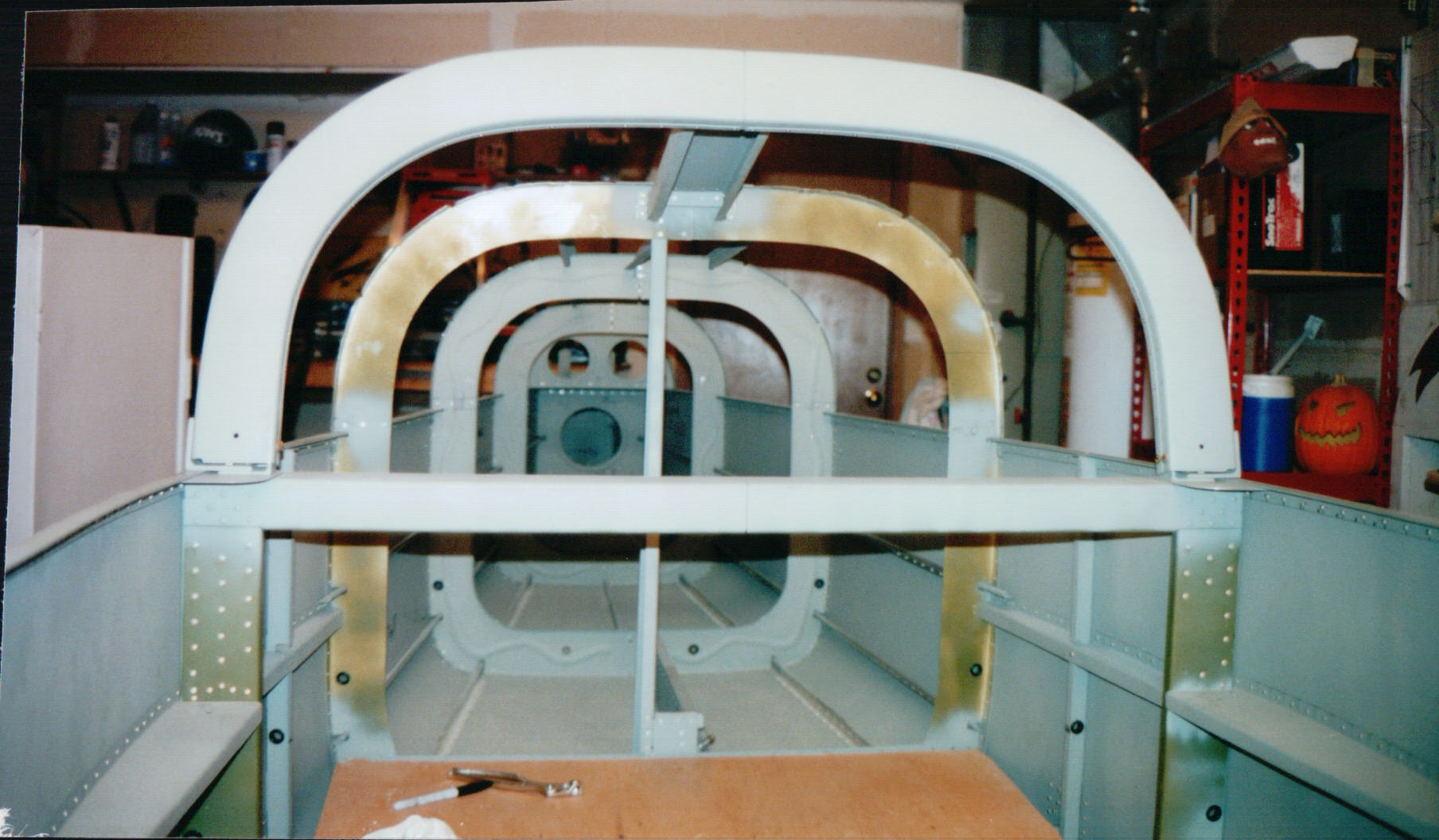

View of roll bar structure from front, with forward to aft brace structure in place; the plywood on the floor spreads the load for laying down in the fuselage and protects the skins from dropped tools and parts:

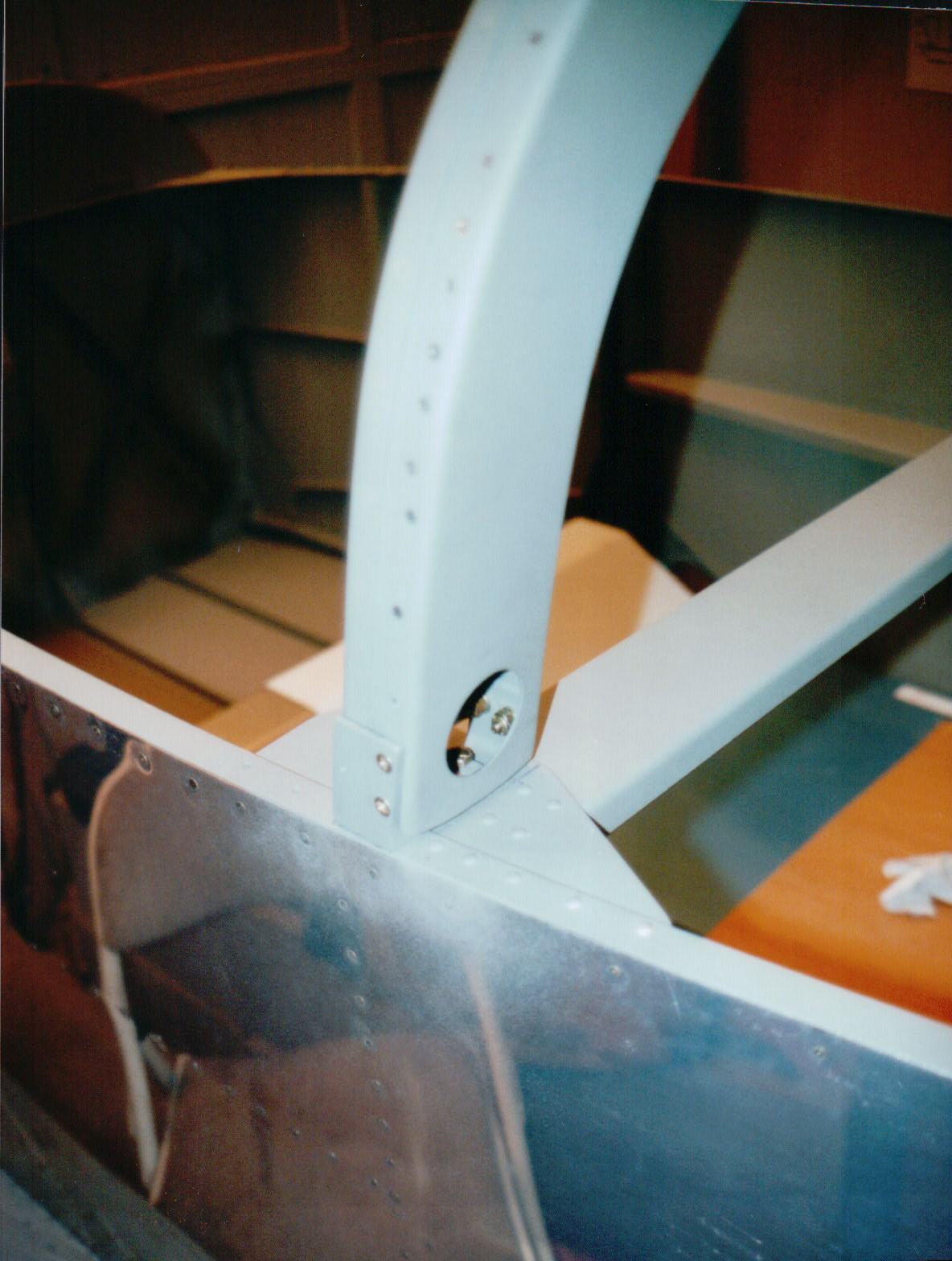

Close up of roll bar attachment to fuselage:

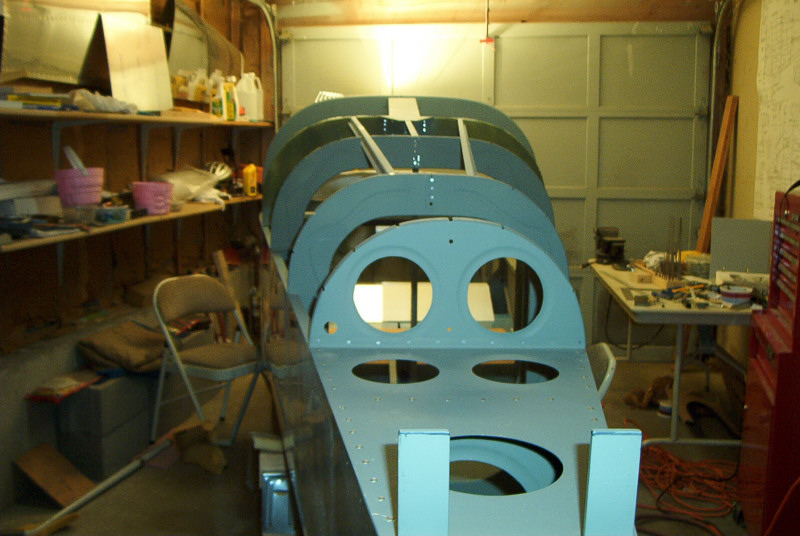

Top view of roll bar structure and fore - aft brace:

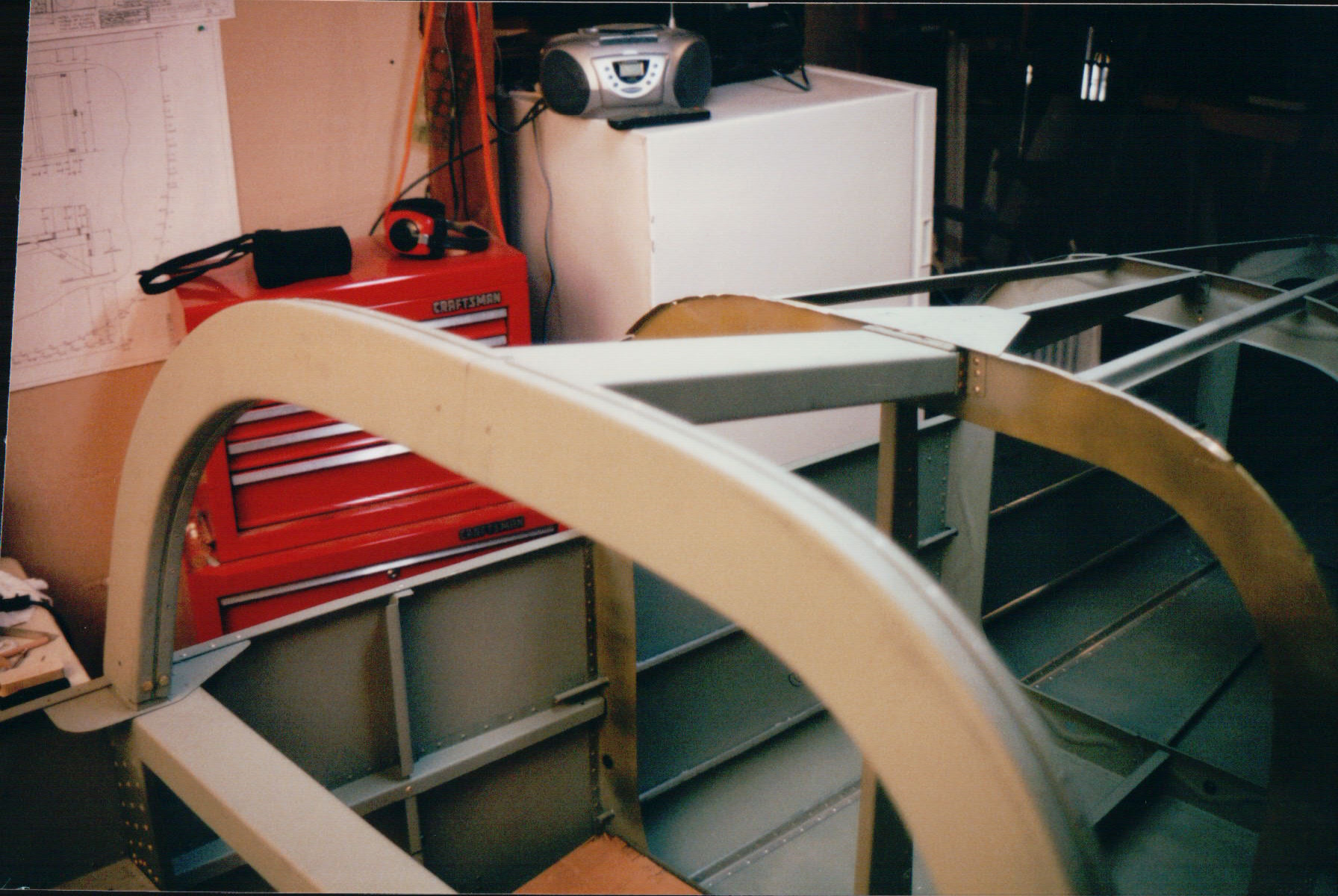

Aft, left view of roll bar structure:

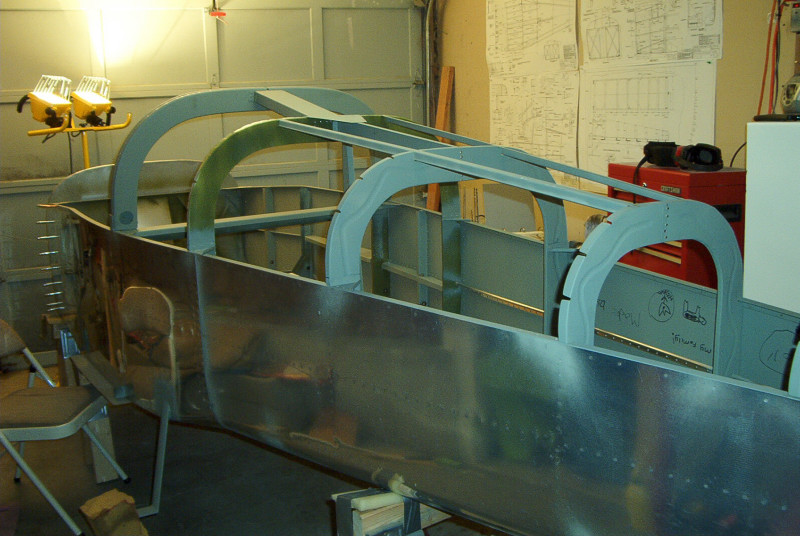

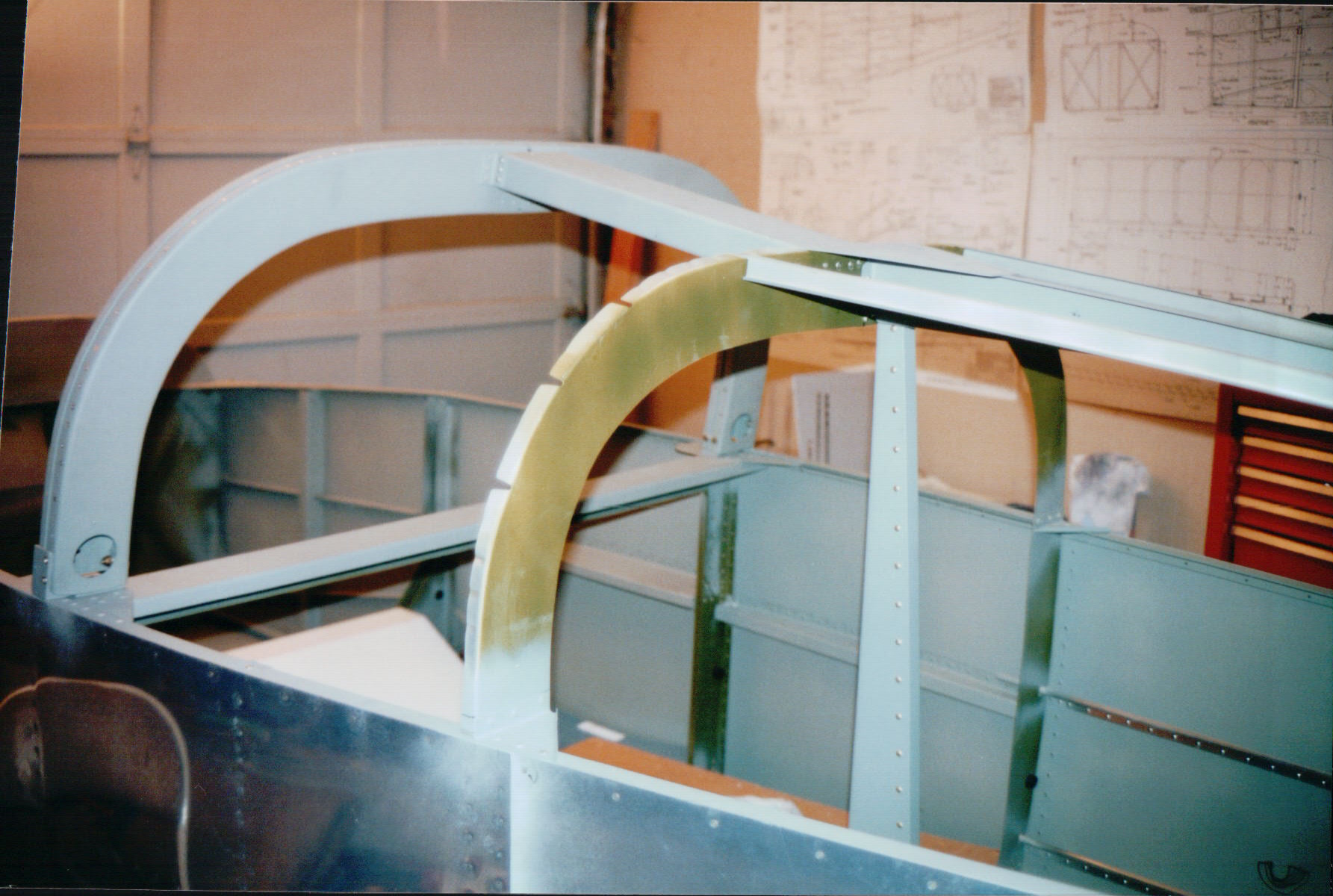

Fuselage almost ready for fitting and drilling top skins:

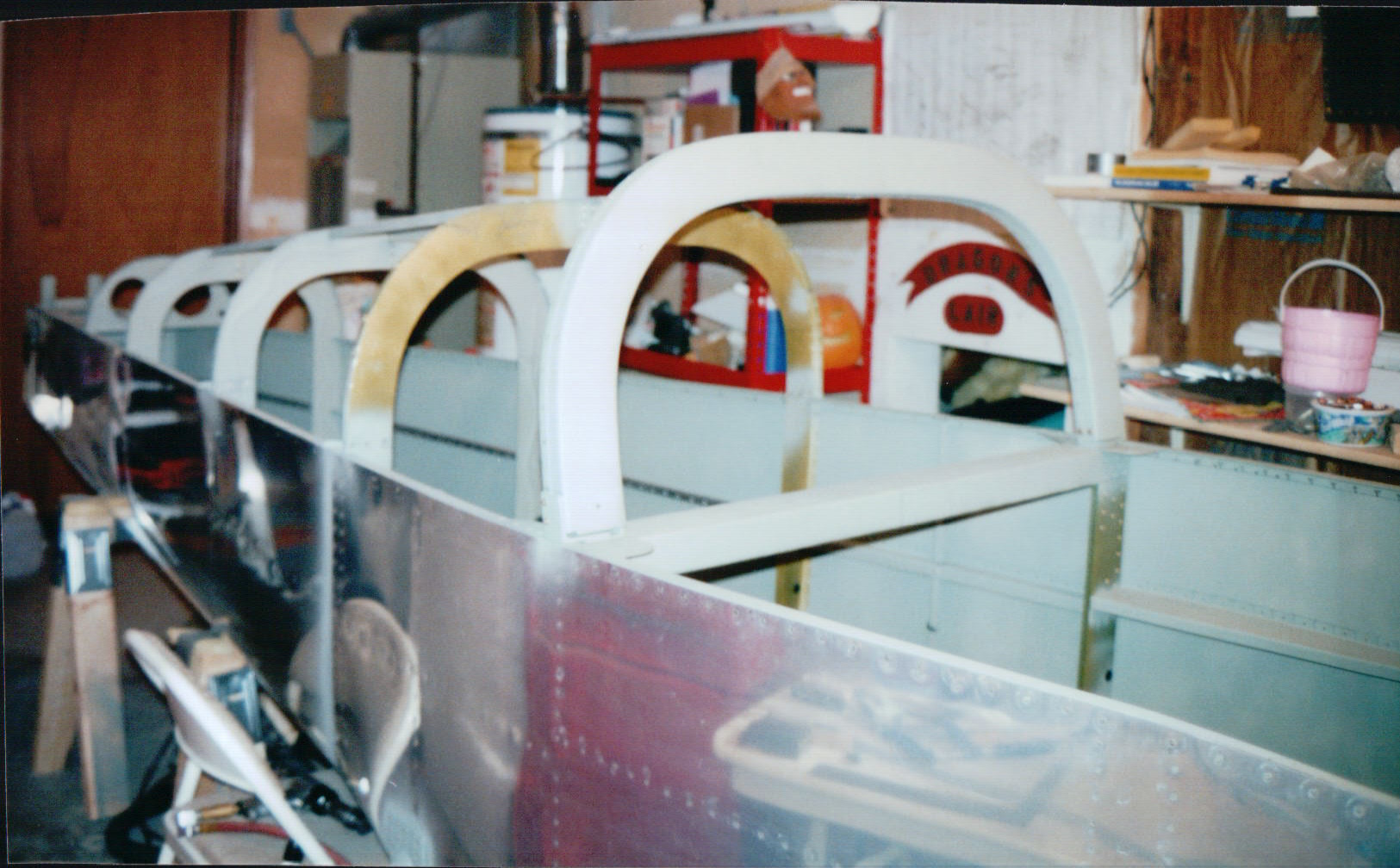

As you can see here, getting to this stage CAN be done in a one car garage or one side of a two car garage if your spouse will only give you half the garage:
