Fuselage Photos (Pg2)

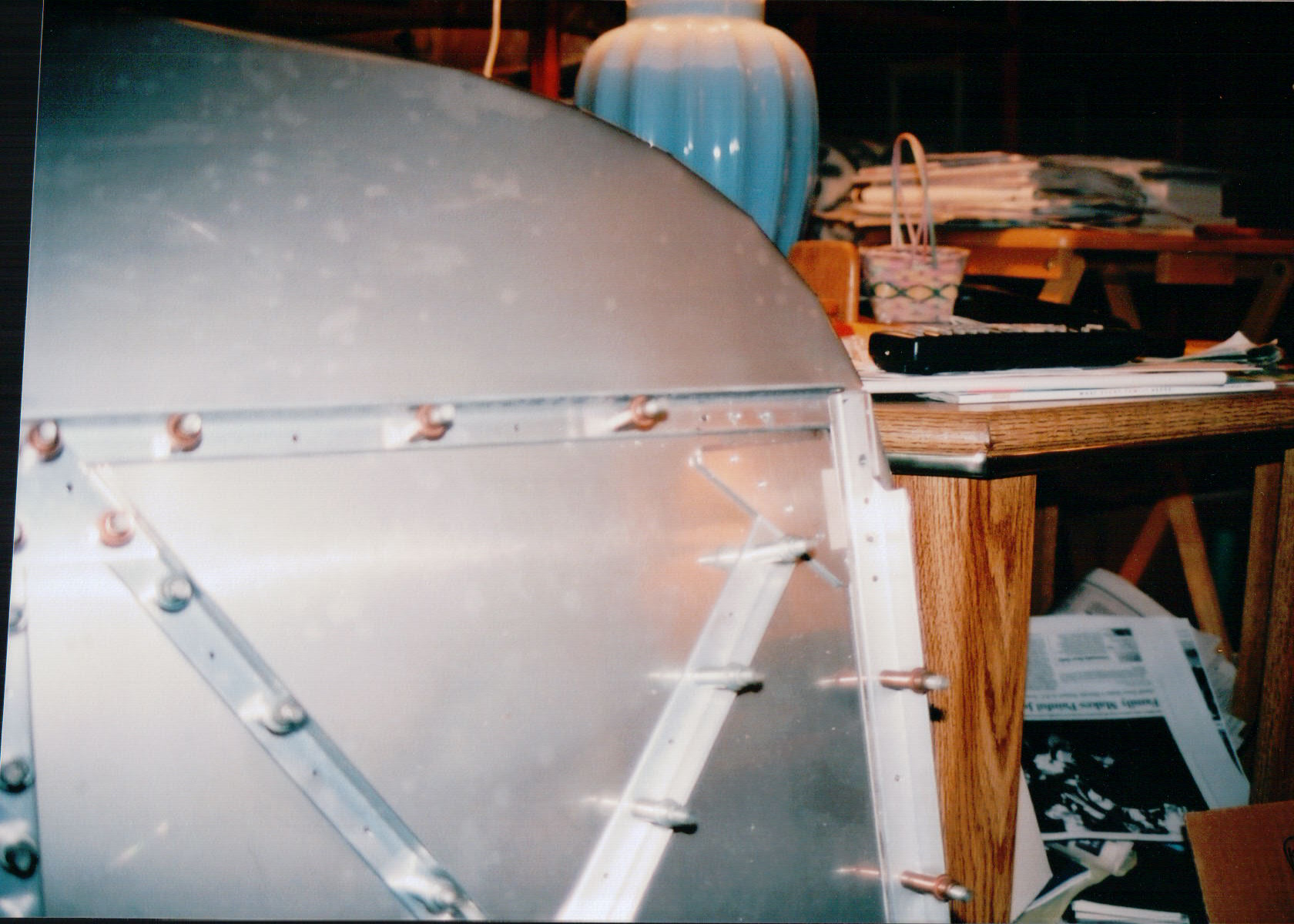

More RV-6A firewall under construction photos here. This one shows upper right corner spacer details under the weldment for engine mount to fuselage connecting point:

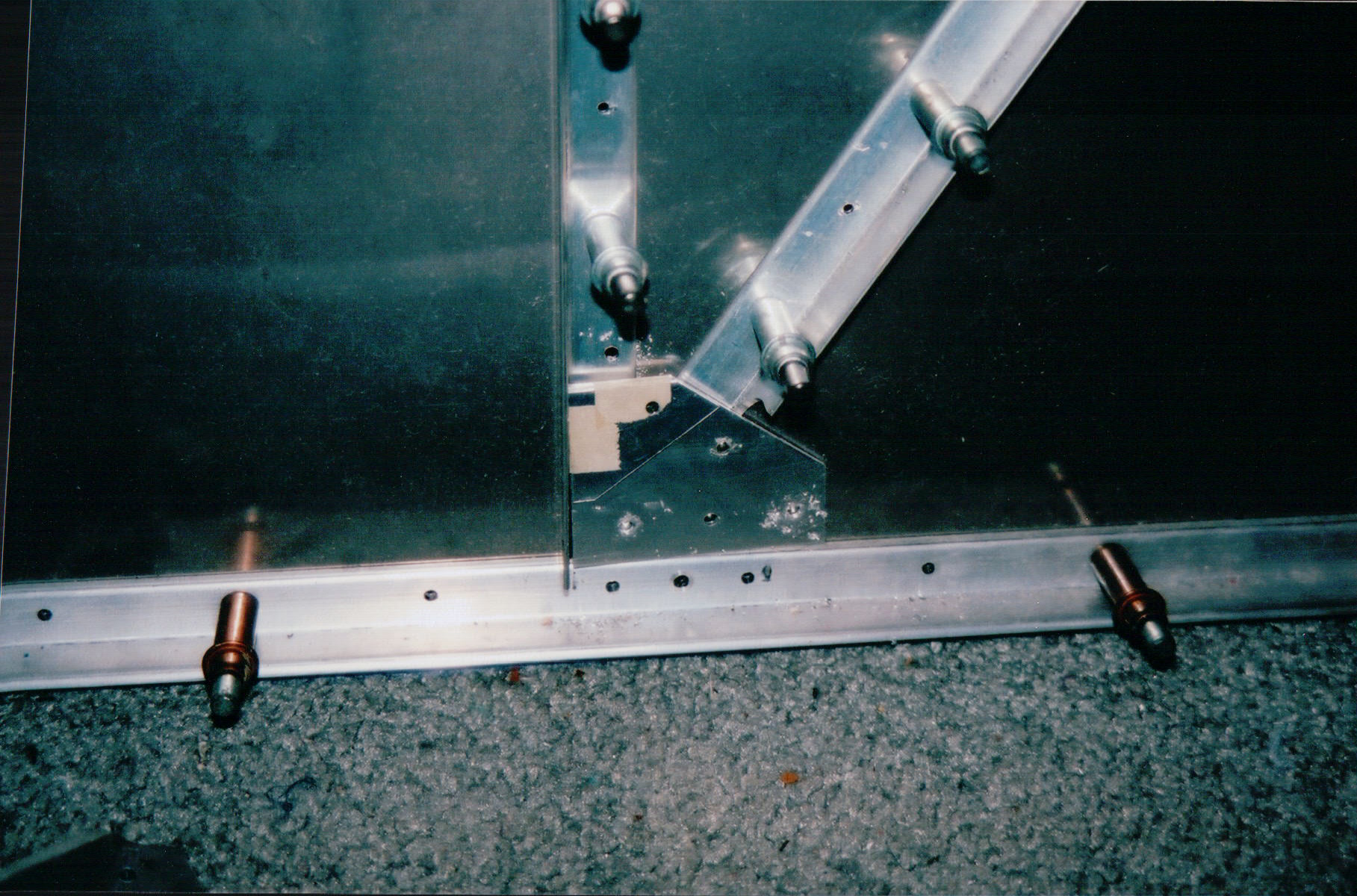

Lower corner of firewall with steel weldment removed:

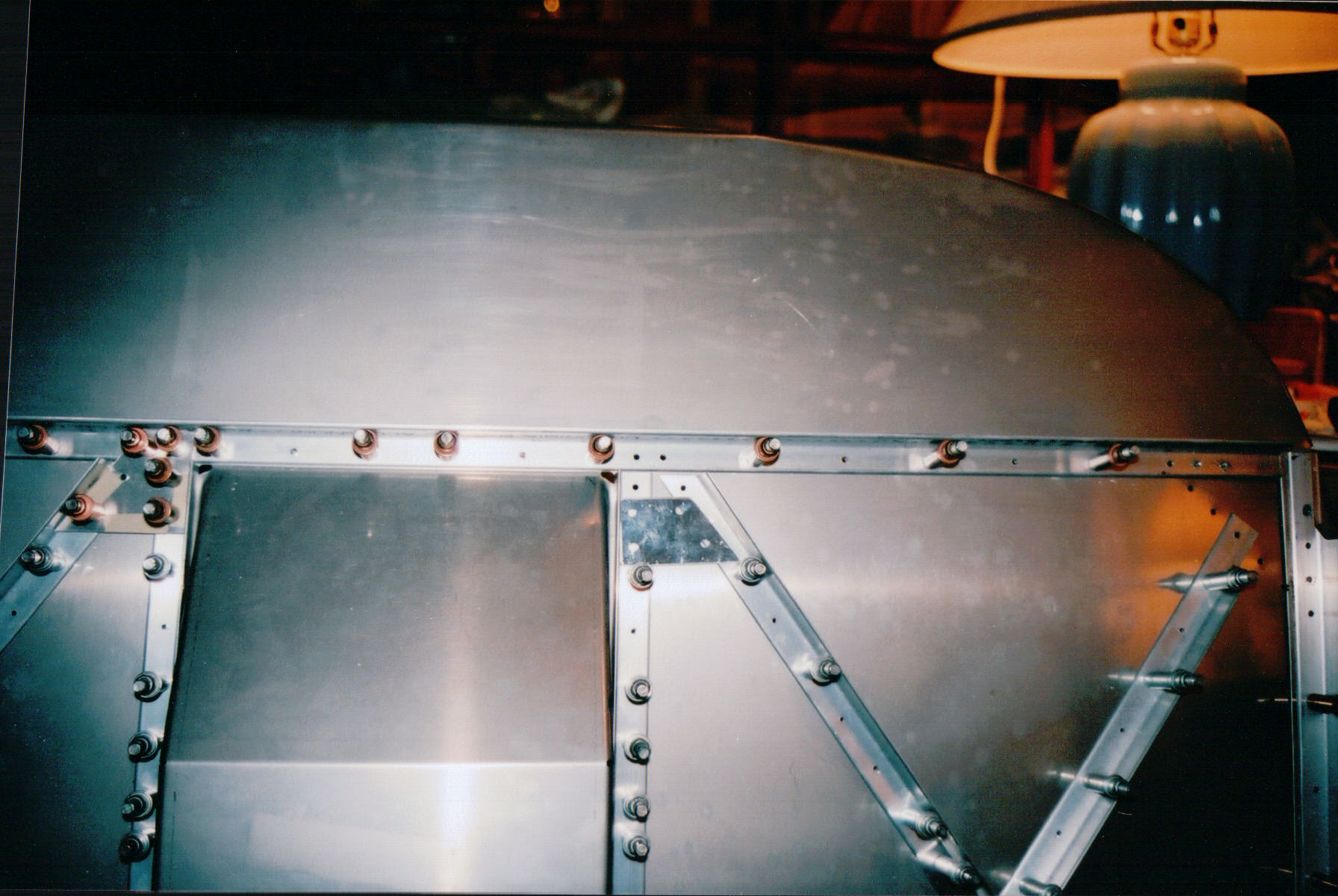

Spacers under the centerline engine mount attach bracket:

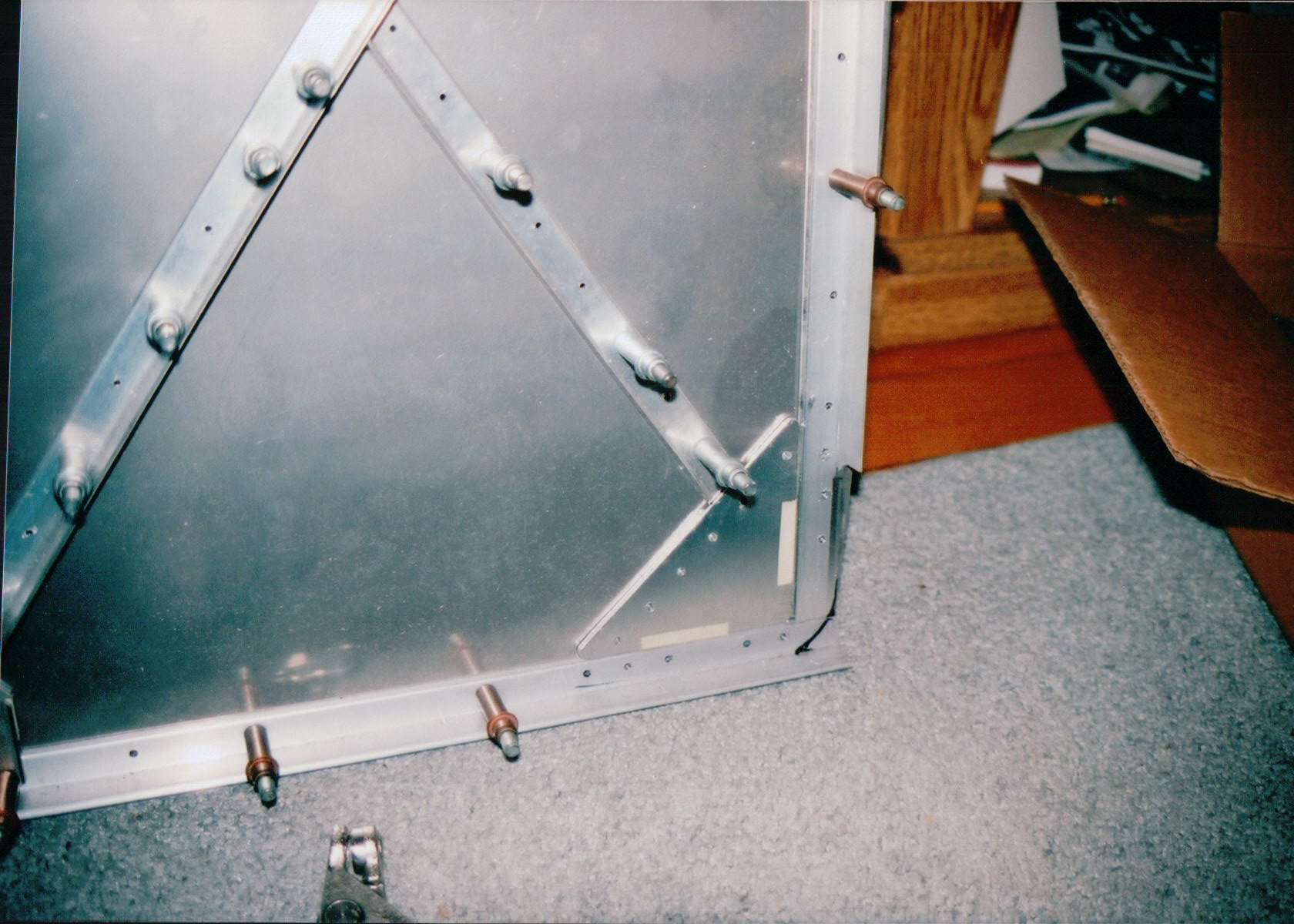

RV-6A firewall disassembled for de-burring, priming, and riveting:

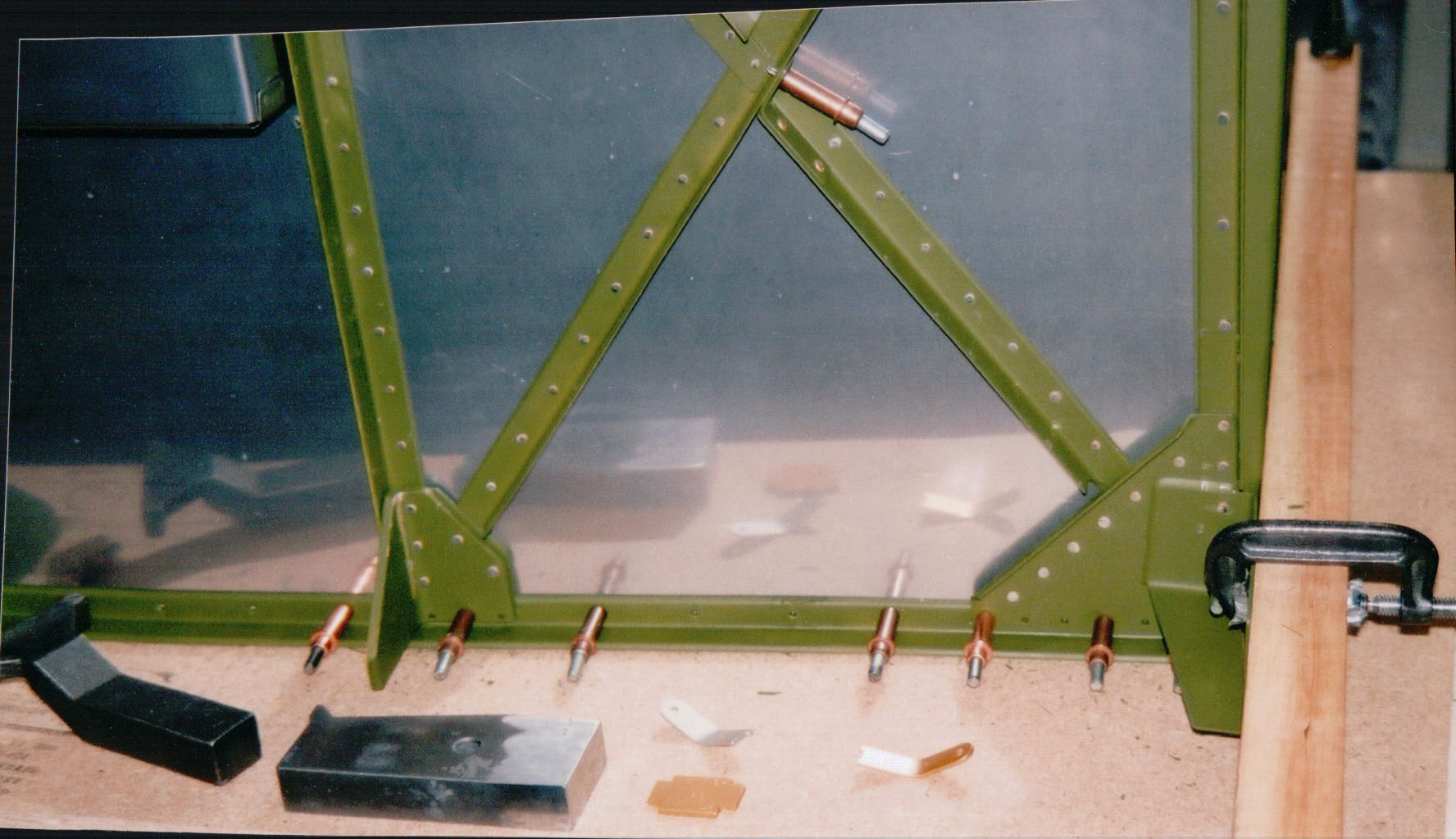

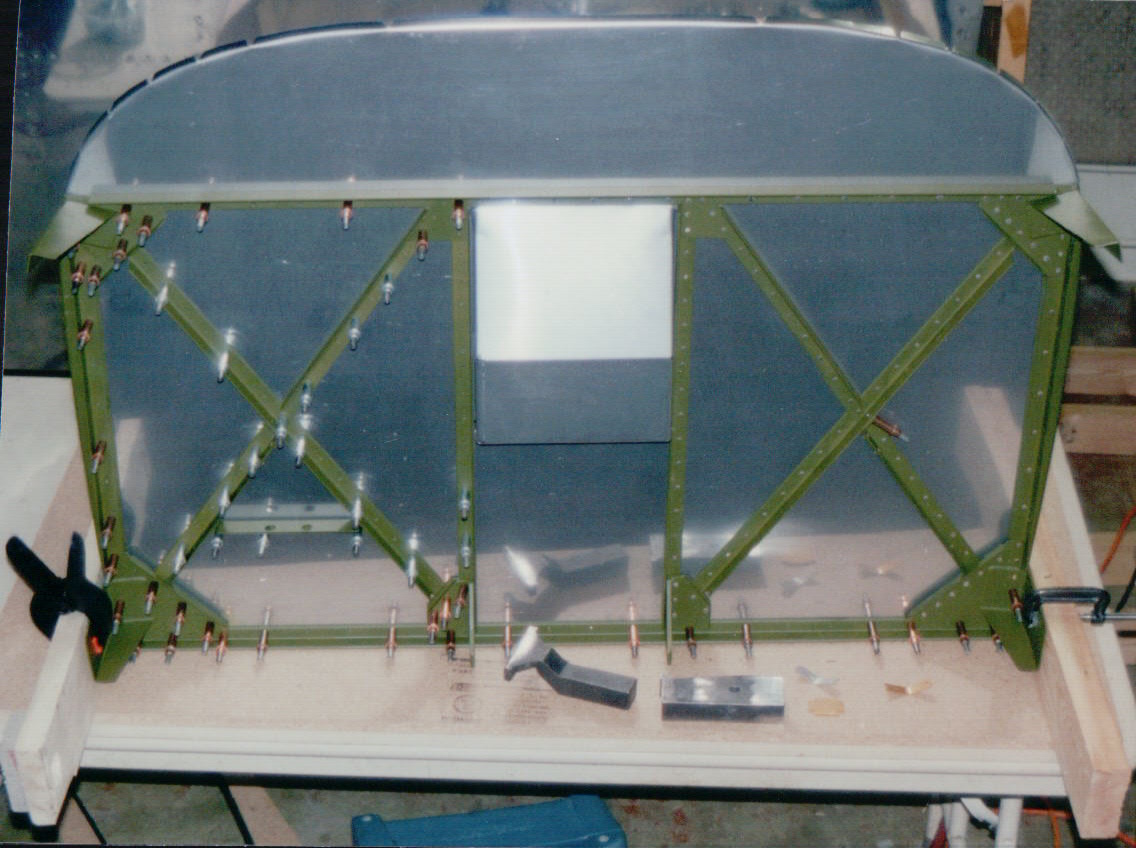

RV-6A firewall final assembly stage shown here, with right (co-pilot) side riveted and left (pilot) side ready for riveting:

Closer view of firewall during riveting process:
