Electrical (pg 6)

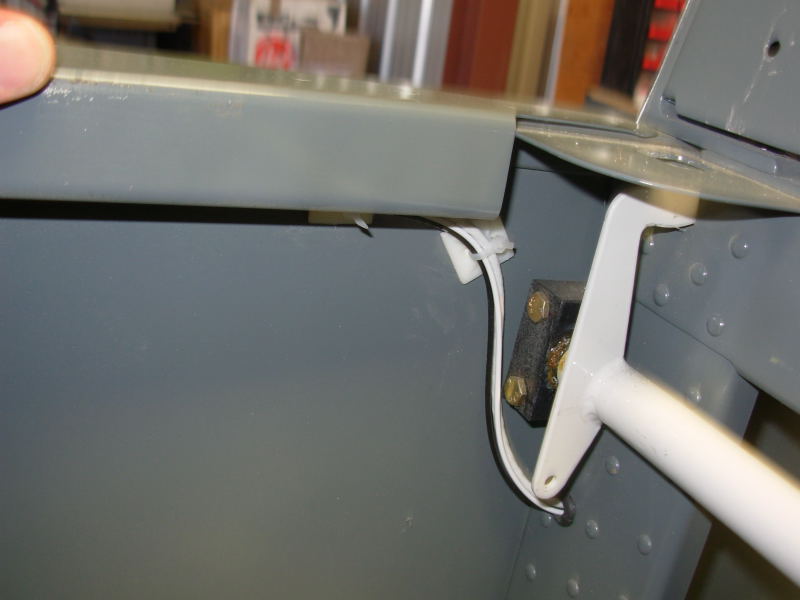

I ran the strobe light power supply power/ground wires and the Trio EZ-1 altitude hold shielded cable along the right side rail to the area behind the baggage compartment bulkhead. This next photo shows how I passed the wiring run through the rear spar bulkhead/cabin frame area:

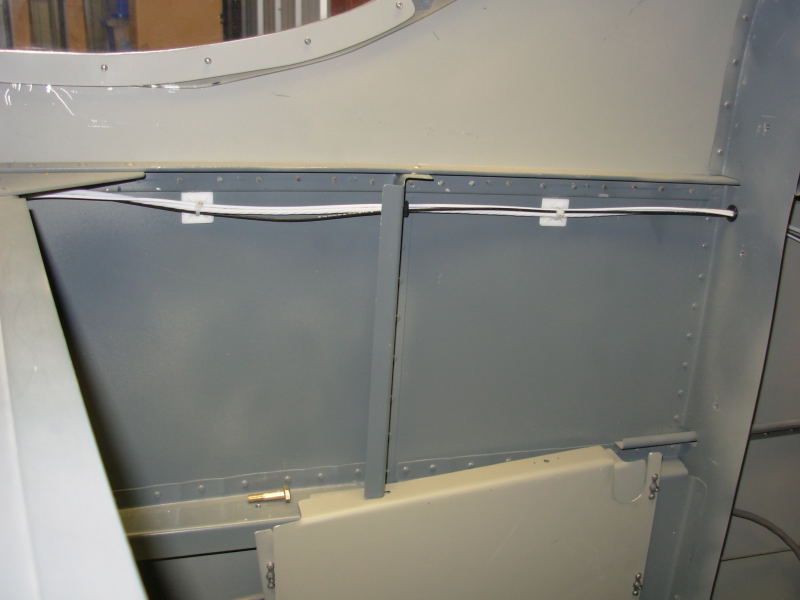

Here are the same wires shown above as they pass through the baggage compartment:

And here's those same wires passing through the baggage compartment bulkhead to where the power supply and servo are mounted:
