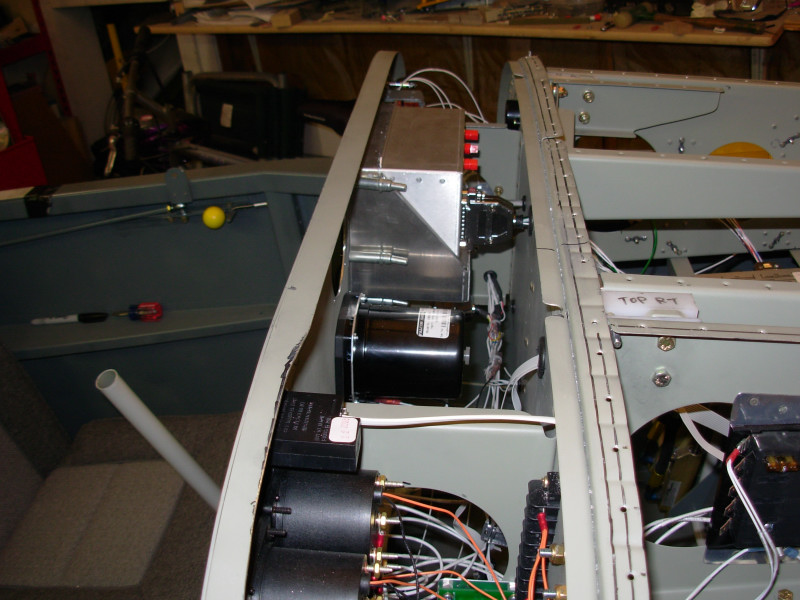

View from right side during panel construction, partially wired with some instruments fit and installed but no radio stack yet:

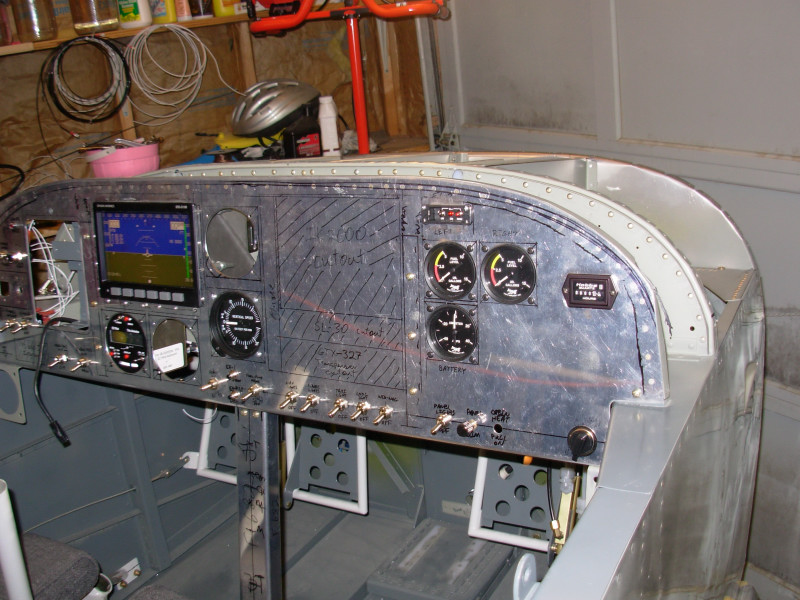

Close up of right side of panel before fitting radio stack:

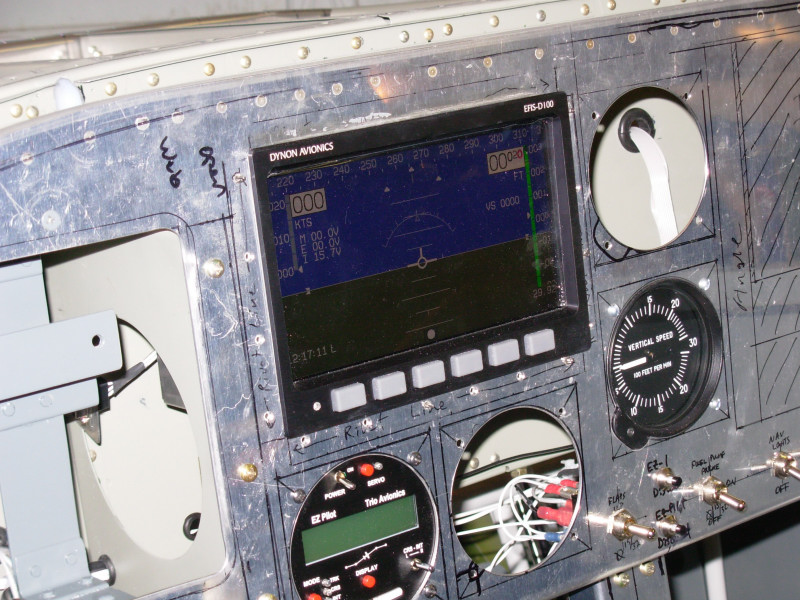

Left side of panel is shown here during construction. The Lowrance 200C GPS has been fit and the mount I made is visible in the cutout next to the Dynon EFIS:

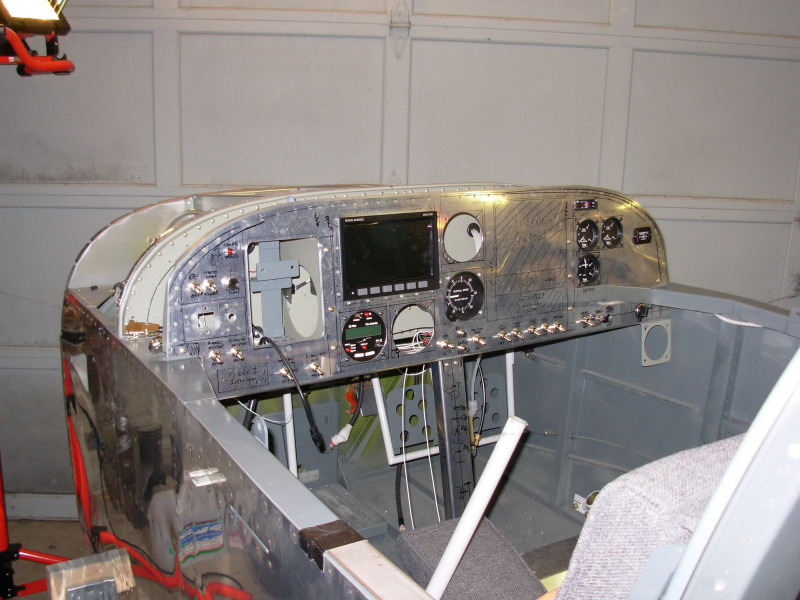

Left side view of partially constructed RV-6A panel temporarily installed;

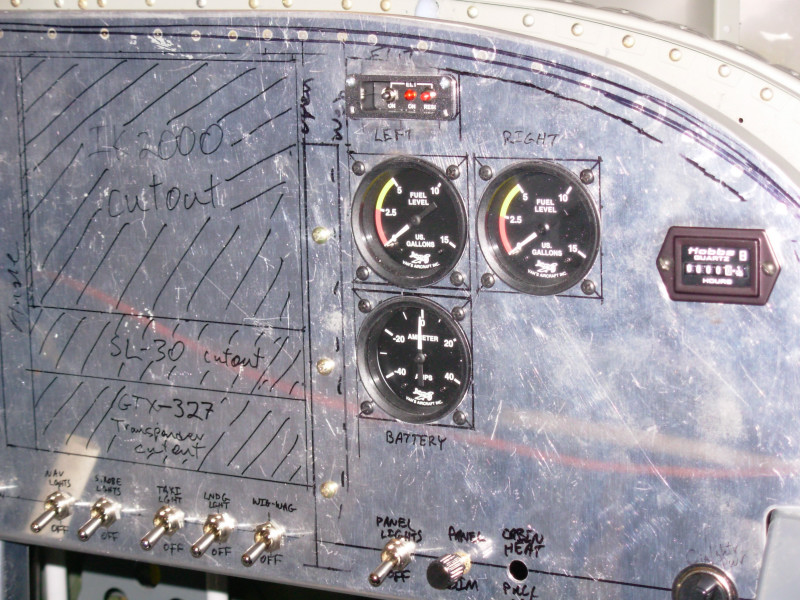

Side view of panel showing some of the instruments and avionics installed:

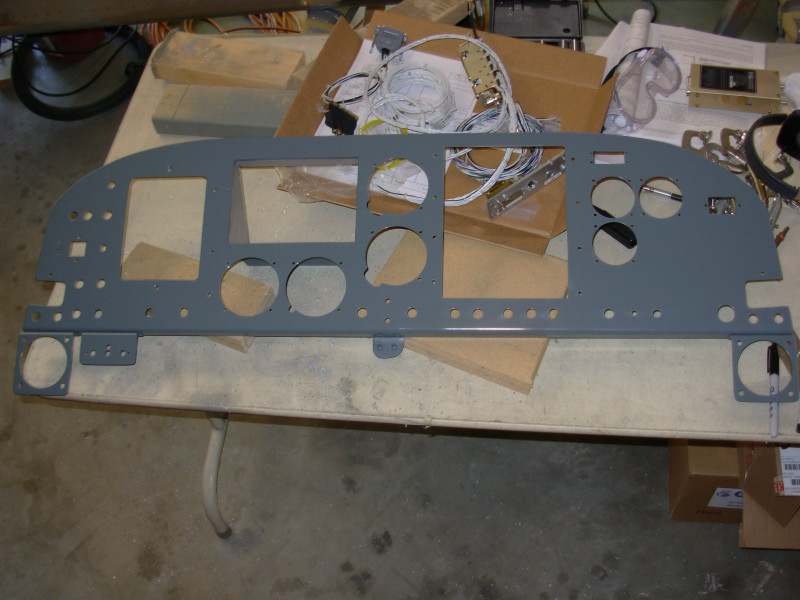

Once I thought it was done (of course small changes and touch up ended up being necessary), I removed everything to clean, prime, and paint the panel in the same flat grey enamel (rattle can) that I used on the rest of the cockpit area:
